System Voltage: DC 1500V
Rated Current: Max 70A
Cable: 2.5mm2~16mm2/14AGW~6AWG
IP： IP68
UV RESISTANCE
Product Overview ：

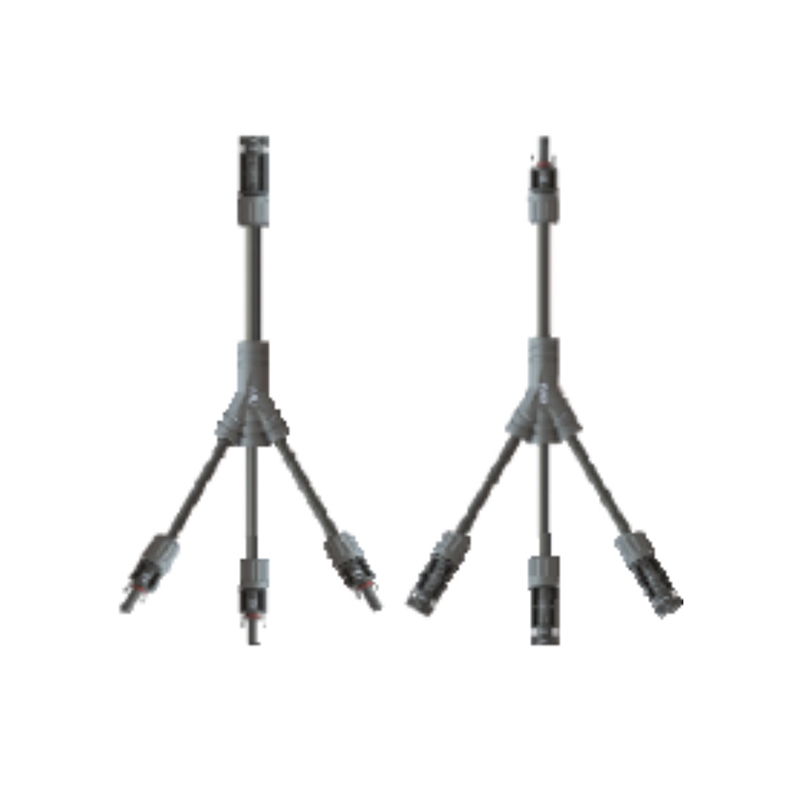

H-3B1 Branch use high quality materials that guarantee long-term reliability. Lower contact resistance and higher current transfer capability ensure high product efficiency. NIU Power H-3B1 Branch have IP68 water-proof rating and can be used in a wide operating temperature range from -40 ° C to 90 °C.
Technical Data：
| Rated Voltag | 1500V |
| Rated Current | Max 70A |
| Ambient temperature | -40℃ up to +90℃ |
| Contact Resistance | ≤0.05mΩ |
| PollutionDegree | ClassII |
| ProtectionDegree | ClassII |
| FireResistance | UL94-V0 |
| RatedImpulseVoltage | 16KV |
| LockingSystem | NECLocking Type |
Order Data：
| Part No. | Cable Spec | Current/ A | Standard Package Unit | Configuration 材料配置 | |
| H-3B1-25 | Input：3x14Awg 2/.5mm2 Output：1x14Awg/2.5mm2 | Input: 3x25A Output:1x25A | 50 pairs /Carton | Connector：A4 25A Cable：14Awg / 2.5mm2 | |
| H-3B1-3F1M-25 | 50 pcs / package | ||||
| H-3B1-3M1F-25 | 50 pcs / package | ||||
| H-3B1-410 | Input：3x12Awg/4mm2 | Input: 3x35A Output:1x70A | 50 pairs /Carton | Input Connector：A4 35A | |
| Input Cable：12Awg / 4mm2 | |||||
| H-3B1-3F1M-410 | Output：1x8Awg/10mm2 | 50 pcs / package | Output Connector：A4 70A | ||
| H-3B1-3M1F-410 | 50 pcs / package | Output Cable：8Awg / 10mm2 | |||
