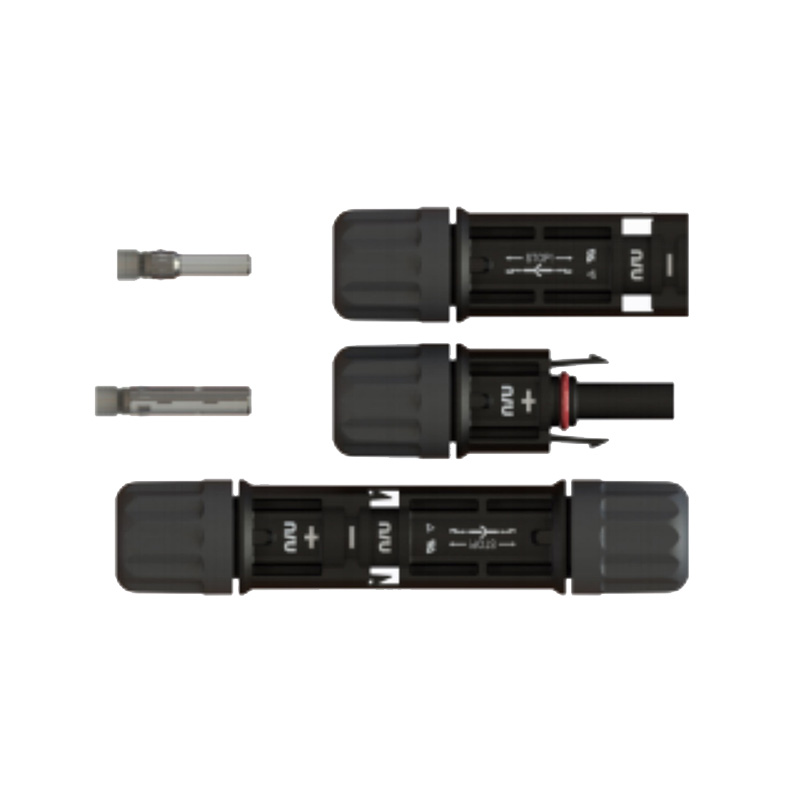

Solar Connectors use high quality weather resistance materials that guarantee long-term reliability. A4 could match 2.5mm2 to 16mm2 cables, it could be wildly used in different applications.
Product Overview：
A4 Max Series connectors use high quality weather resistance materials that guarantee long-term reliability. A4 could match 2.5 mm2 to 16mm2 cables, it could be wildly used in different applications. The lower contact resistance and higher current transfer capability ensure high product efficiency. A4 Max connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 85 °C.
Technical Data：
| Rated Voltage | IEC 1500V & UL1500V |
| Certification | IEC 62852; UL 6703 |
| Rated Current | 2.5mm2 25A; |
| 4mm2 35A; | |
| 6mm2 40A; | |
| 10mm2 50A; | |
| 16mm2 70A | |
| Ambient Temp | -40C up to +85C |
| Contact Resistance | ≤0.25mΩ |
| Pollution Degree | Class II |
| Protection Degree | Class II |
| Fire Resistance | UL94-V0 |
| Rated Impulse Voltage | 16KV |
