Assembled with poly cells, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Product Features:
High Power Generation/High Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

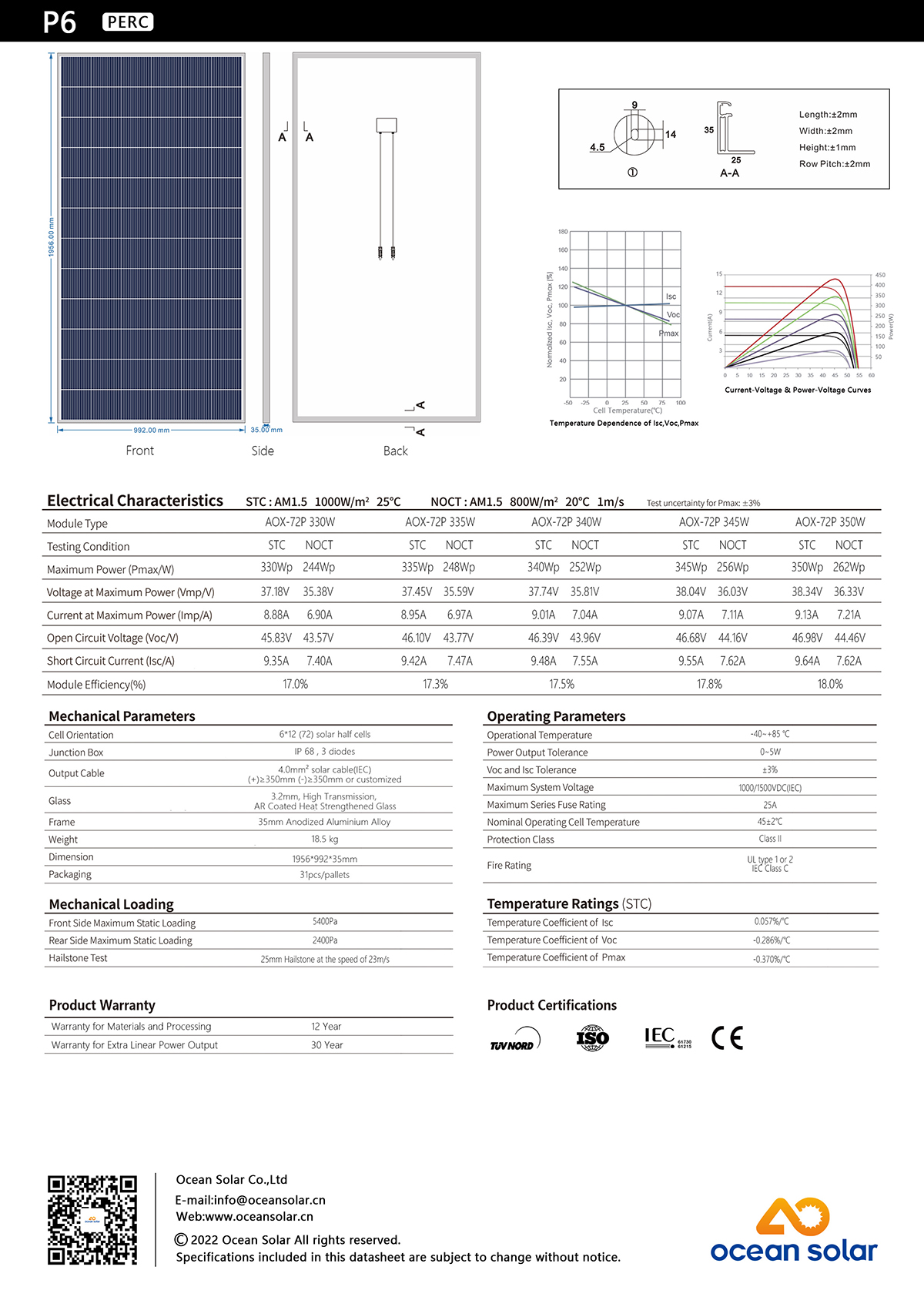

Data Sheet：
Cell | Poly 157*157mm |
No. of cells | 72（6*12） |
Rated Maximum Power(Pmax) | 330W-350W |
Maximum Efficiency | 17.0-18.0% |
Junction Box | IP68,3 diodes |
Maximum System Voltage | 1000V/1500V DC |
Operating Temperature | -40℃～+85℃ |
Connectors | MC4 |
Dimension | 1956*992*35mm |
No.of one 20GP container | 310PCS |
No.of one 40HQ container | 816PCS |
Product Warranty：
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
Product Certificate：
Product Advantage：
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Product Application：
Widely used in residential PV system，commercial & industrial PV system，utility-scale PV system，solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.
