Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Product Features:
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

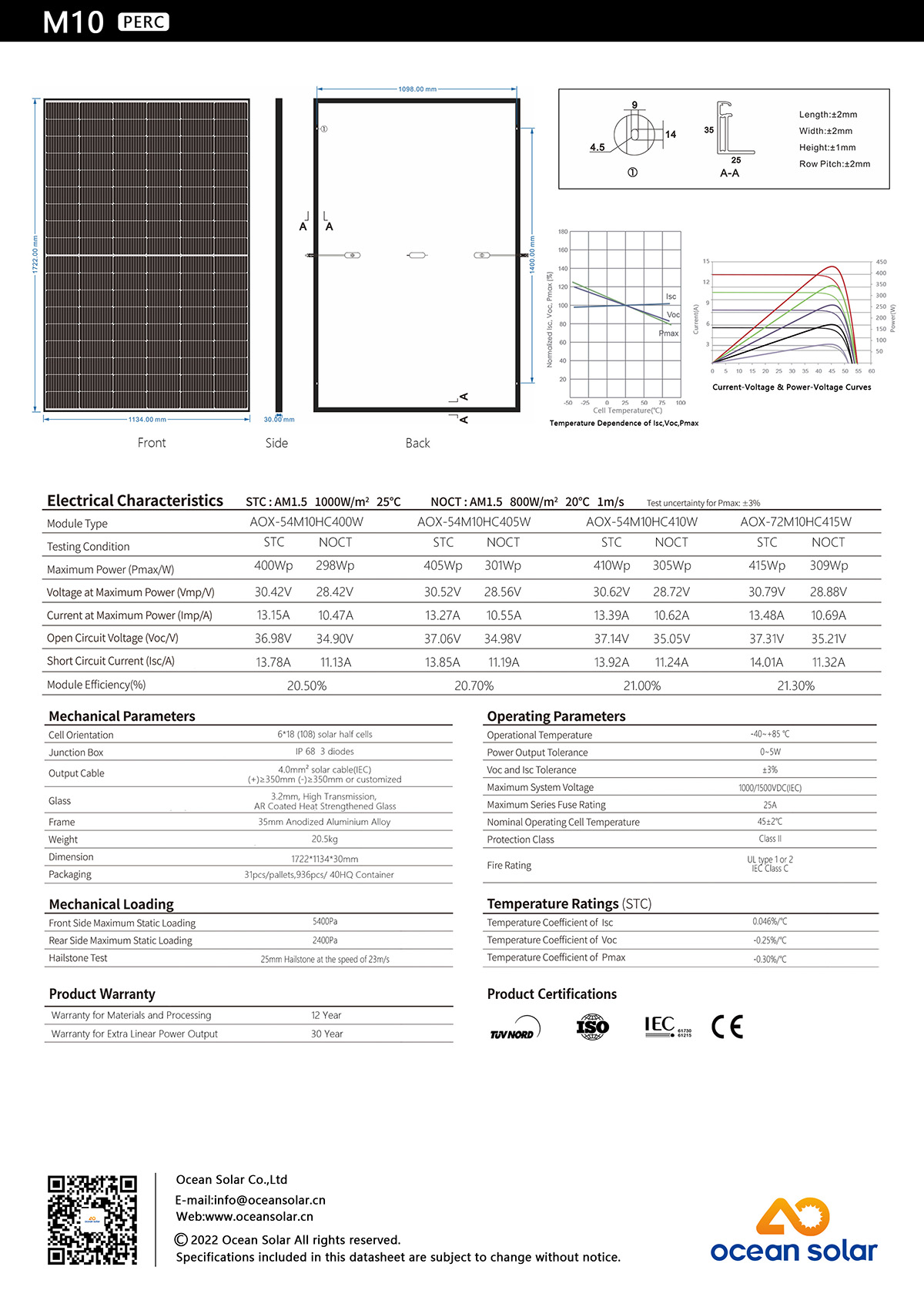

Data Sheet：
Cell | Mono 182*91mm |
No. of cells | 108（6×18） |
Rated Maximum Power(Pmax) | 400W-415W |
Maximum Efficiency | 20.5-21.3% |
Junction Box | IP68,3 diodes |
Maximum System Voltage | 1000V/1500V DC |
Operating Temperature | -40℃～+85℃ |
Connectors | MC4 |
Dimension | 1722*1134*30mm |
No.of one 20GP container | 396PCS |
No.of one 40HQ container | 936PCS |

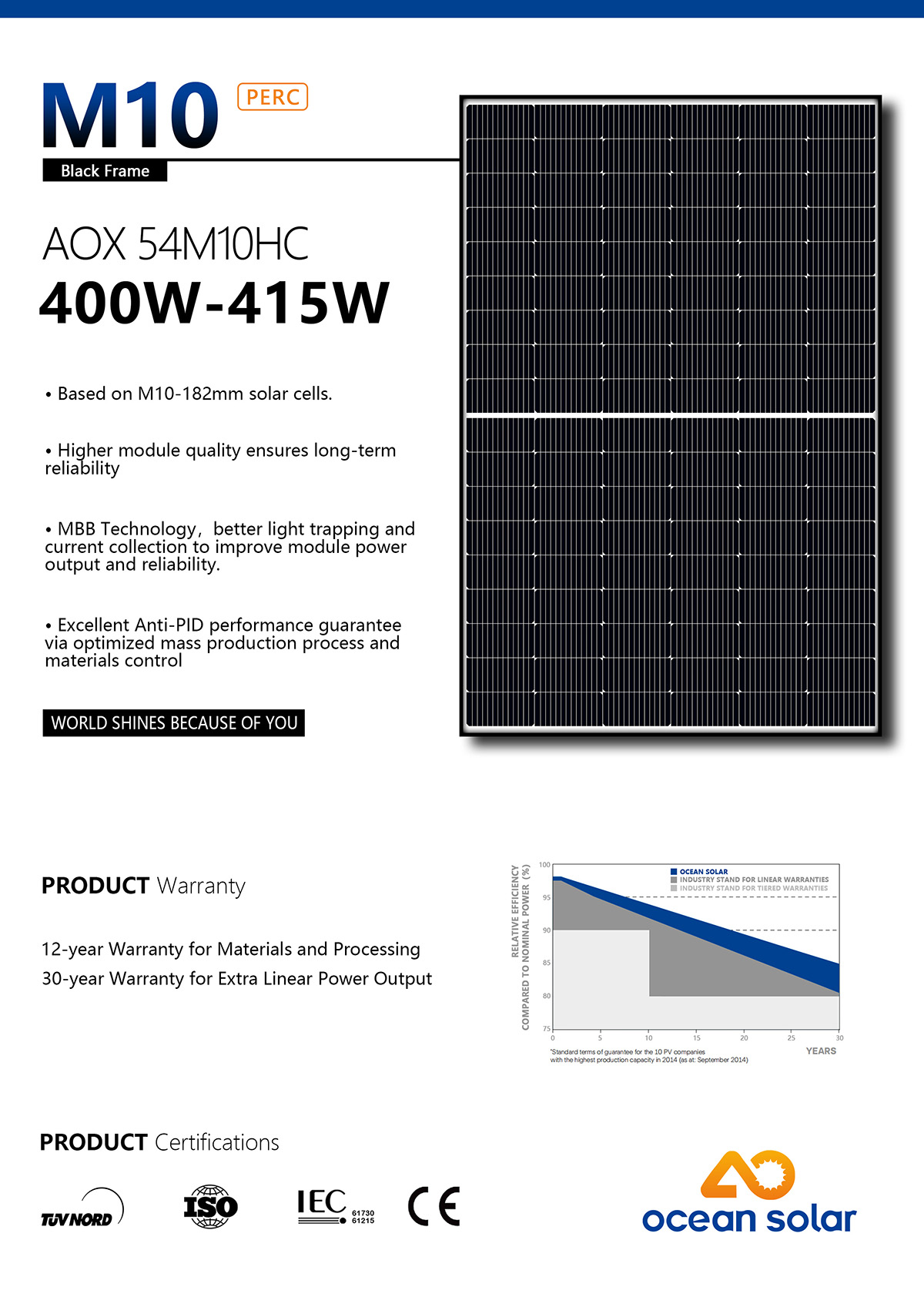

Product Warranty：
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
Product Certificate：
Product Advantage：
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Product Application：
Widely used in residential PV system，commercial & industrial PV system，utility-scale PV system，solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.
