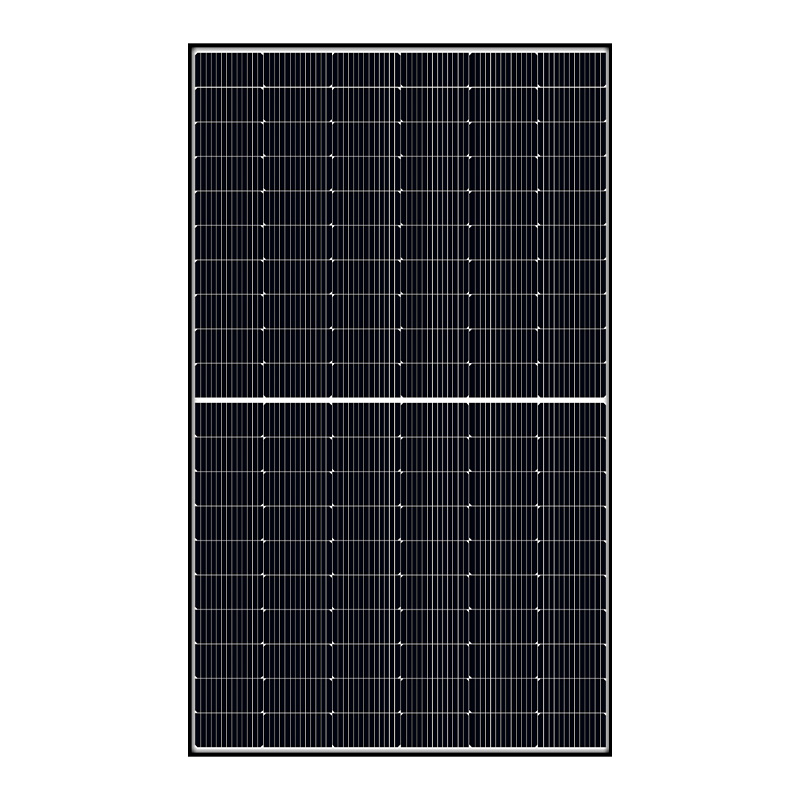

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Product Features:
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

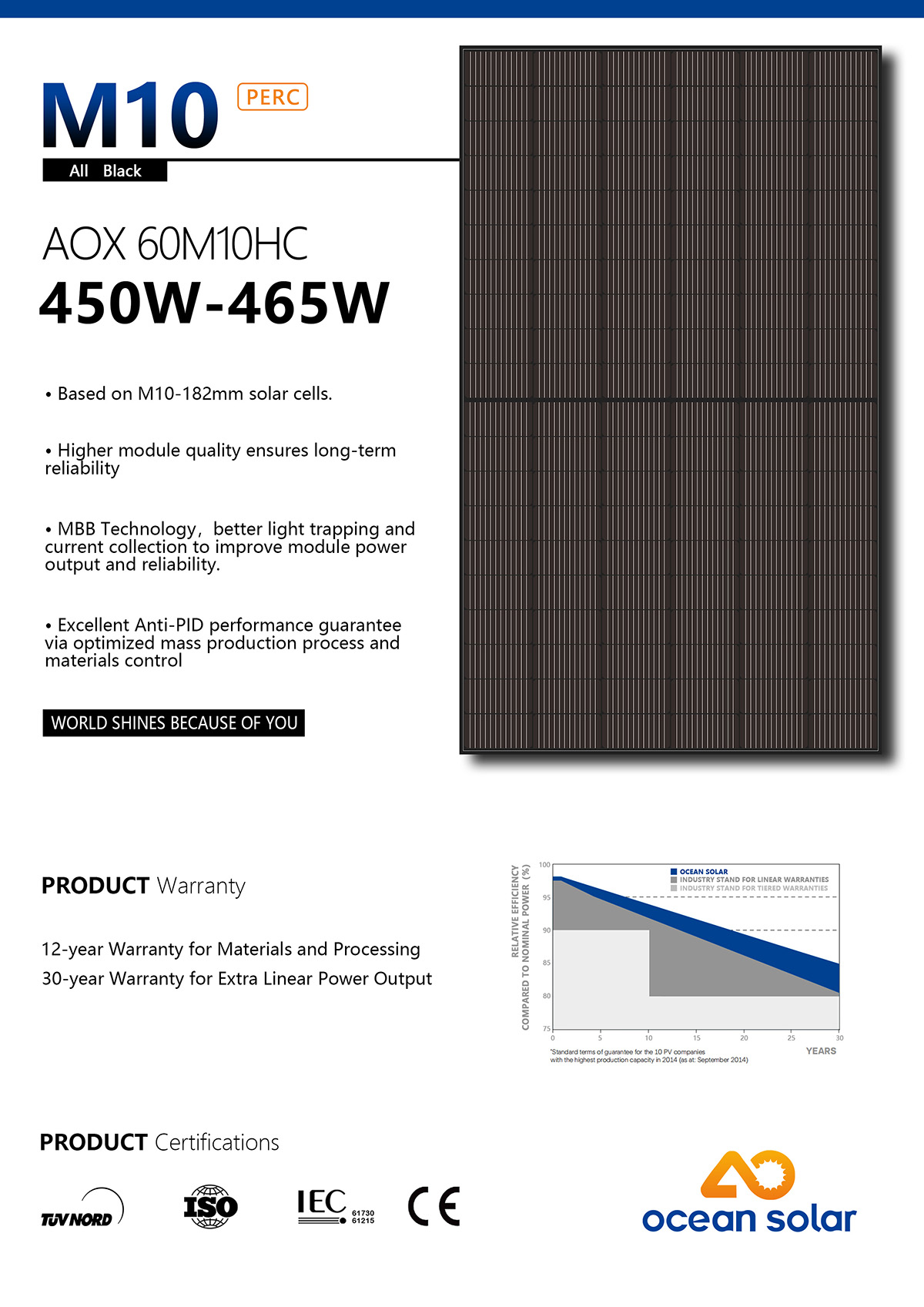

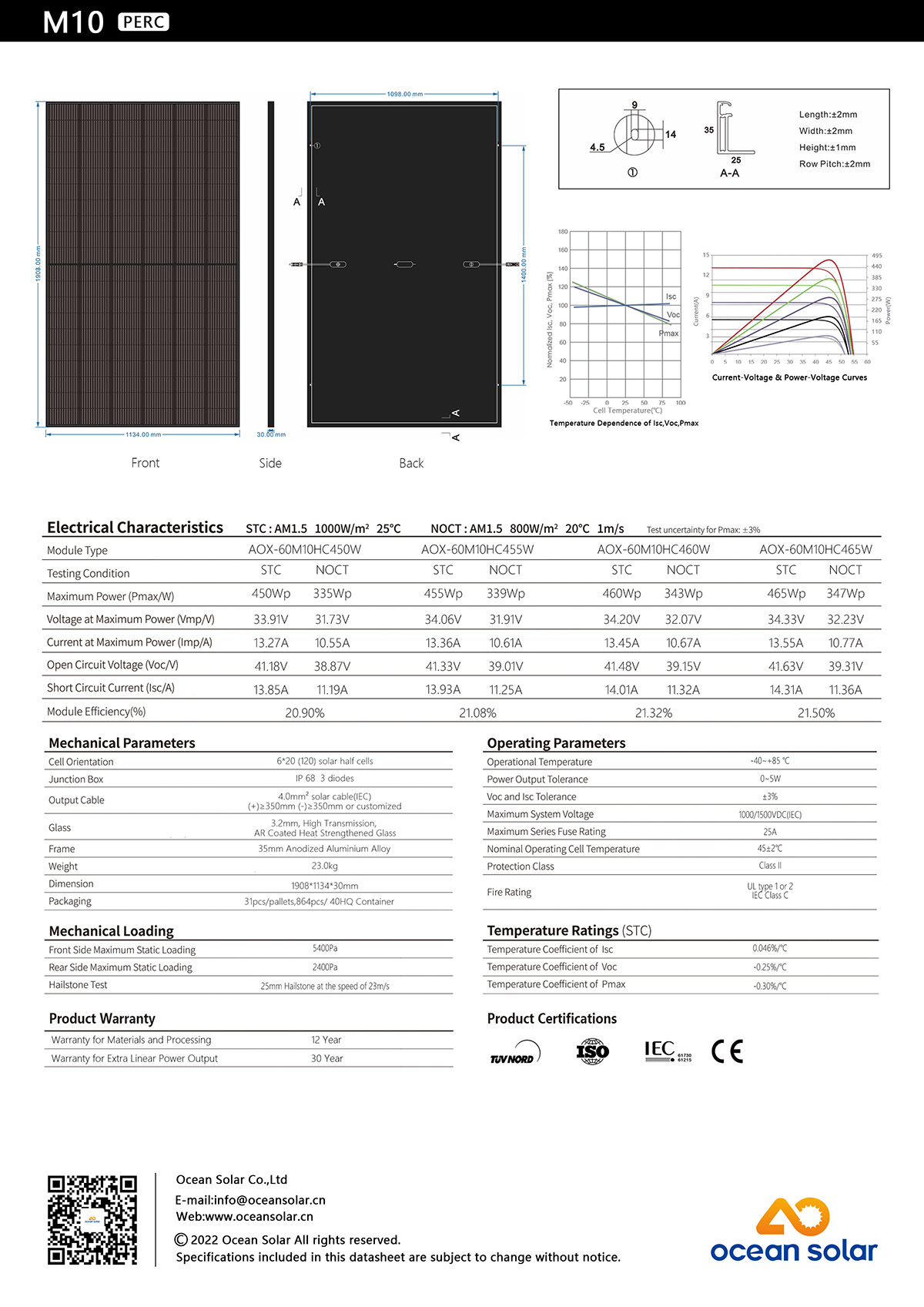

Data Sheet:
Cell | Mono 182*91mm |
No. of cells | 120(6×20) |
Rated Maximum Power(Pmax) | 450W-465W |
Maximum Efficiency | 20.8-21.5% |
Junction Box | IP68,3 diodes |
Maximum System Voltage | 1000V/1500V DC |
Operating Temperature | -40℃~+85℃ |
Connectors | MC4 |
Dimension | 1908*1134*30mm |
No.of one 20GP container | 396PCS |
No.of one 40HQ container | 864PCS |
Product Warranty:
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
Product Certificate:
Product Advantage:
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Product Application:
Widely used in residential PV system,commercial & industrial PV system,utility-scale PV system,solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.
Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Product Features:
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance
Data Sheet:
Cell | Mono 182*91mm |
No. of cells | 120(6×20) |
Rated Maximum Power(Pmax) | 450W-465W |
Maximum Efficiency | 20.8-21.5% |
Junction Box | IP68,3 diodes |
Maximum System Voltage | 1000V/1500V DC |
Operating Temperature | -40℃~+85℃ |
Connectors | MC4 |
Dimension | 1908*1134*30mm |
No.of one 20GP container | 396PCS |
No.of one 40HQ container | 864PCS |
Product Warranty:
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
Product Certificate:
Product Advantage:
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Product Application:
Widely used in residential PV system,commercial & industrial PV system,utility-scale PV system,solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.
